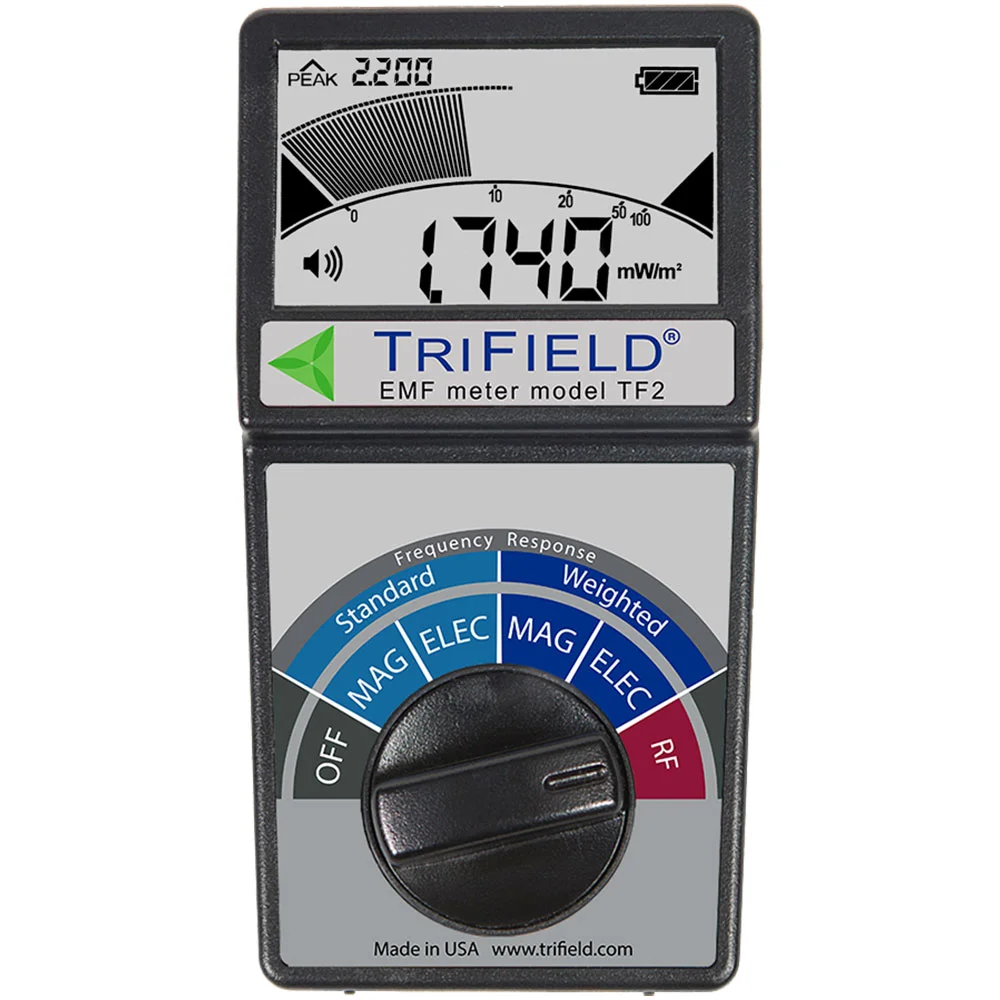

TriField® TF2 EMF Meter
Detect Electric Fields, Magnetic Fields, Radio Frequencies (RF) all with one device.

Detect and monitor electromagnetic fields (EMF) quickly, easily and accurately.
Discover how much electromagnetic frequency is around you and measure electropollution levels.

Uses for the TriField® TF2 EMF Meter
an AC gaussmeter
an AC electric field meter
a radio frequency meter (for detecting levels around mobile phones, WiFi, etc.)

The TriField® EMF Meter Modes
The TriField® EMF Meter combines multiple features
for fast and precise measurement of electromagnetic fields (EMF).

The TriField® TF2 EMF Meter detects three types of EMF pollution
AC magnetic, AC electric, and RF/microwave
and has a special frequency weighting mode for measuring EMF in the human body.

The TriField® special frequency-weighted mode scales magnetic and electric measurements.
This indicates the full magnitude of currents produced by each type of field inside the human body.

See Electric Fields, Magnetic Fields, Radio Frequencies (RF) all in one device.
Audio indicator points to EMF sources.
Measurements are 3-axis, allowing for quick readings, regardless of the meter orientation.

AC Electric Mode covers 40 Hz – 100 kHz
AC Magnetic Mode covers 40 Hz – 100 kHz
RF Mode covers 20 MHz – 6 GHz
with a range of 0.001 – 19.999 milliwatts per square meter (mW/m2)

Easy to use and clear to read
The TriField® TF2 EMF Meter is easy to use.
It has a large LCD that shows accurate readings clearly.
Because it comes with an adjustable backlight, it can be used in low-light environments.
It can operate for more than 20 hours with the backlight off and up to 12 hours with the backlight on.
It comes with a 9V alkaline battery that includes a low battery indicator.

Detect with the TriField® TF2 EMF Meter
Mobile phone and cell tower RF radiation
Smart meter RF radiation
Household appliances with EMF emission
Wi-Fi router and Bluetooth RF radiation
Overhead AC power line and transformer EMF emissions
EMF emission inside aircraft and motor vehicles
Microwave oven leak
Location and EMF of wiring in walls
EMF from plumbing pipes

Specifications
Detects:
RF (WiFi, Bluetooth, Mobile Phones, etc.), magnetic fields, electric fields.

Range:
RF 20MHz – 6GHz
Magnetic 40 Hz – 100 KHz
Electric 40 Hz – 100 KHz

Accuracy:
RF ±20% @ 1 GHz
Magnetic ±4% @ 50/60 Hz
Electric ±5% @ 50/60 Hz

Questions
Does this measure mobile phone and mobile mast signals?
Yes.

Does this measure electric appliance emissions?
Yes. This device measures emissions from all appliances from laptops to refrigerators.

Will it detect WiFi radiation?
Yes.

Will it detect overhead power lines and transformer emissions?
Yes.

What are the dimensions of the device?
1.5 in × 2.75 in × 5.25 in

How long does the battery last?
Operates for more than 20 hours on a 9 V battery. It has a low battery indicator.

What is an EMF Meter?
An EMF Meter measures your surrounding environment for potentially harmful radiation and electromagnetic fields. These invisible fields are created by phone lines, cell phones, power stations, and man-made appliances. We cannot see electromagnetic fields so we don’t know we are being exposed to them.

An EMF meter makes these invisible fields visible by signalling the presence of an electromagnetic field and the level of radiation it is generating in the environment.

When you see the exposure you are getting, you can decide what you want to do about it.

How does an EMF Monitor work?
These devices work by picking up signs of electromagnetic radiation using antennas.

Each EMF Monitor is different and may show different readings.
The monitor will display a number to indicate the presence of electromagnetic radiation,
the frequency of the radiation, and how much radiation is present.
High numbers mean a high level of radiation, and low numbers equate to lower levels.

How to use an EMF Monitor?
Turn it on and hold it in front of you.
When you change the direction of the monitor,
you can see how the electromagnetic frequency differs from area to area.

Why do you need an EMF Meter?
You can use an EMF Meter to find sources of electromagnetic radiation and check levels.
This is important because high levels of man-made EMF radiation can affect our health.

What is EMF radiation?
There are two types of EMF, natural and man-made.
Natural EMF radiation is found in nature.
It comes from the sun, plants and even our own bodies.
Natural EMF doesn’t cause any problems but man-made EMF radiation does.
Examples of man-made electromagnetic fields include
things like computers, phones, wi-fi routers, microwaves, and other appliances.

EMF and RFR exposure have been linked to many health conditions.
Sleep problems
Mental health issues
Increased cancer risk
Headaches and migraines
Brain fog
Fatigue
Hormone imbalances
Inflammation
Infertility
And more.

An EMF detector is a useful tool as it shows you how much EMF radiation is around you.
When you know how much EMF and RFR you are exposed to and where it’s coming from
you can protect yourself from excess electropollution.
For example: an EMF detector can show you which things in your home are emitting high levels of radiation. Then you can use shielding products or replace appliances for ones with lower EMF / RFR emissions.

How do you choose the best EMF Detector?
There are a range of EMF / RFR detectors and monitors available.
We stock some of the top brands in the industry, including EMFields Acousticom
and the highly sought-after Trifield TF2.
More expensive detectors tend to provide more accurate and in-depth readings,
but you may not need this level of detail and so a lower priced product would be sufficient.
